POOL PUMP MOTORS

56J & 56Y Threaded Shaft

  • Energy Saving, reliable “Switchless” PSC Design
  • Threaded Shaft – 304 stainless
  • 6204 Locked Bearing
  • Internal Cooling Fan
  • Non-Conductive internal splash guard
  • Grounding lug
  • 1HP design has 1.4SF – 1.5HP design has 1.3SF

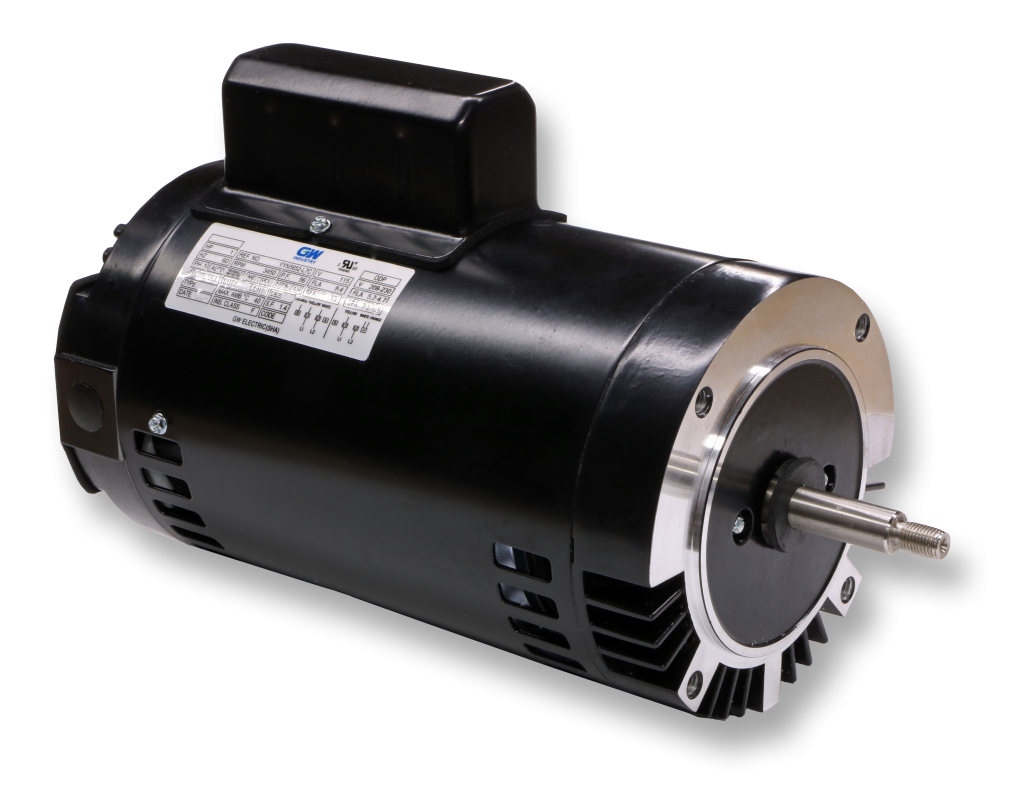

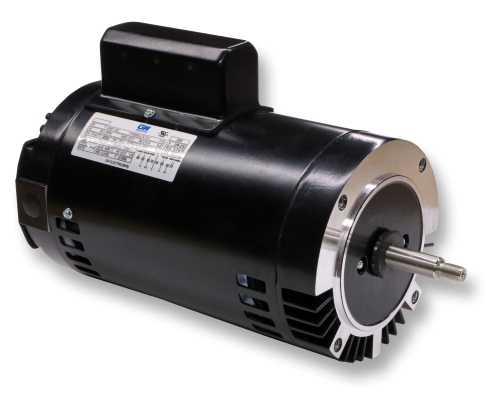

IND No. PP5652C - 1HP 115/230V 56J Frame Energy Efficient Pool Pump Motor
IND No. PP5652C - 1HP 115/230V 56J Frame Energy Efficient Pool Pump Motor

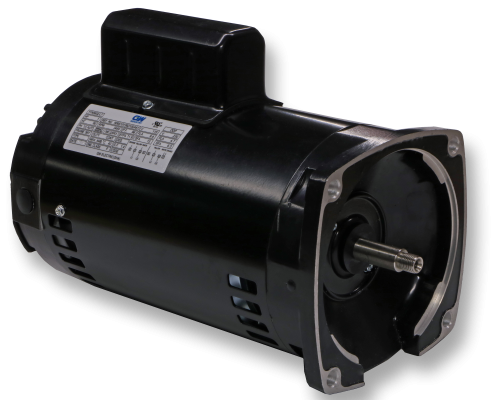

IND No. PP5652SQ - 1HP 115/230 56Y Frame Square Flange Energy Efficient Pool Pump Motor
IND No. PP5652SQ - 1HP 115/230 56Y Frame Square Flange Energy Efficient Pool Pump Motor

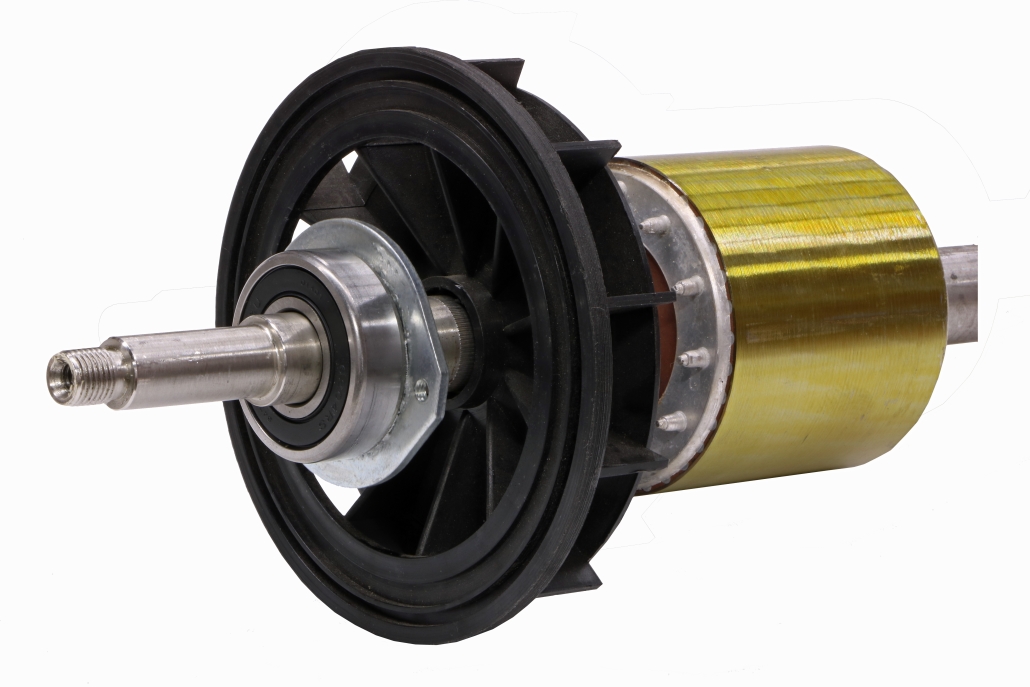

Energy Efficient Pool Pump Motor 6204 Locked Bearing DE
Energy Efficient Pool Pump Motor 6204 Locked Bearing DE

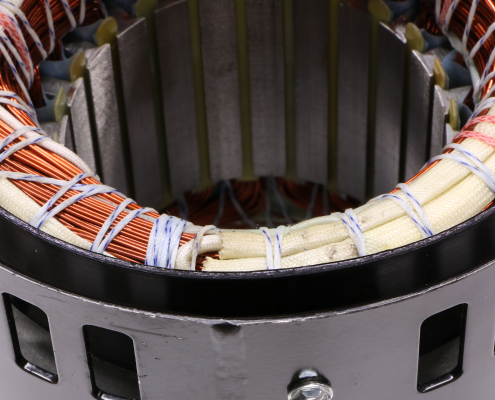

Energy Efficient Pool Pump Motor Non-Conductive Splash Guard
Energy Efficient Pool Pump Motor Non-Conductive Splash Guard

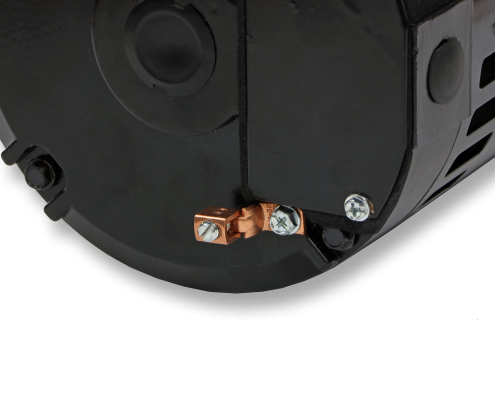

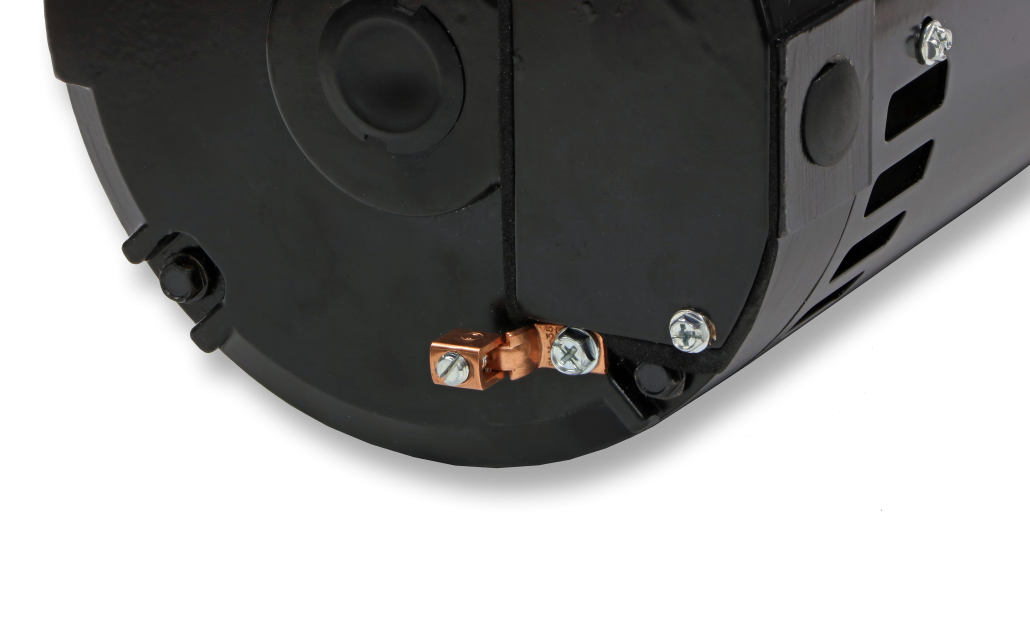

Heavy Grounding Lug - Non Drive End Energy Efficient Pool Pump Motor
Heavy Grounding Lug - Non Drive End Energy Efficient Pool Pump Motor

HP

RPM

FRAME

IND#

THERMAL

VOLTAGE

S.F.

115V SFA

230V SFA

WGT LB

RESOURCES
1.0
3450
56J
PP5652C
AUTO.
115/230
1.4
13.0
6.5
33
DRAWING
56Y
PP5652SQ
DRAWING
1.5
3450
56J
PP5672C
AUTO.
115/208-230
1.3
15.6
7.8
40
DRAWING
56Y
PP5672SQ
DRAWING

PARTS LIST

IND#

RUN CAPACITOR #

THERMAL #

(KLIXON SANSATA)
PP5652C
CAP OR-30-3.0-370
ATOP MEJ28RX
PP5652SQ
CAP OR-30-3.0-370
ATOP MEJ28RX
PP5672C
CAP OR-35-3.4-370
ATOP MEJ22RX
PP5672SQ
CAP OR-35-3.4-370
ATOP MEJ22RX

  • Click To Download Pool Pump Motor Catalogue Pages In PDF
